MD40: Precision and Versatility for Shallow Geotechnical Drilling

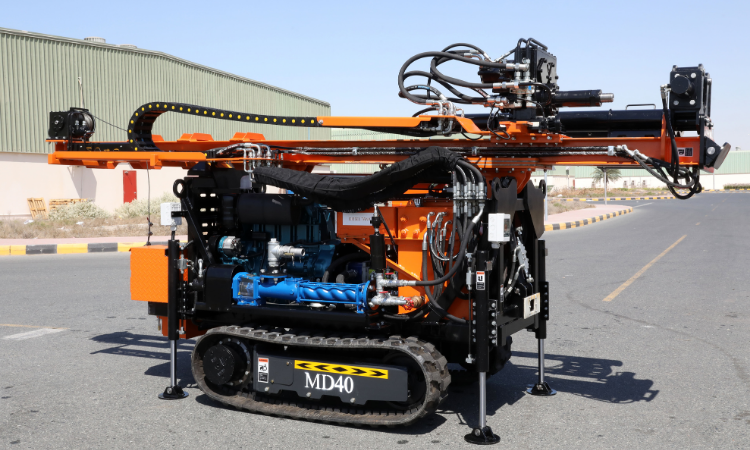

The MD40 is MetaDrill’s most compact and maneuverable track-mounted drilling rig, designed for shallow geotechnical drilling in confined spaces or hard-to-access areas. Offering exceptional performance and flexibility, the MD40 can handle both 1.5 m and 3 m rods. Equipped with a 4-speed rotation head or a dual-motor system, it optimizes drilling efficiency while maintaining high precision.
MD40: Key Features
| Compact Design | With a width of only 1.6 meters, the MD40 is perfect for working in tight spaces, ensuring excellent manoeuvrability. |
| Drilling Depth |
NW: 60 m (196 ft) H wireline: 40 m (130 ft) P wireline: 25 m (82 ft) |
| Engine Power | 62 kW (66 hp), Tier IIIA / Stage V — FPT / John Deere / Kubota |
| Diesel Tank | 45 L (36 gallons) |
| Pull Up Traction | Max. 2,500 daN [5,620 lbs] |
| Pull Down | Max. 1,500 daN [3,300 lbs] |
| Feeding Stroke | 2.1 m [6.8 ft] (Optional 3.5 m [11.48 ft]) |
| Mast Dumping | 520 mm |
| Rotation Head Configuration | Single Speed Gearbox + Two Fixed Displacement Motors Series/Parallel |
| Rotation Head Torque | Maximum Torque: 2,500 Nm [1,840 lb-ft] |
| Rotation Head Speed | 0 – 500 RPM |
| Hoisting Winch |
1,000 kg [2,205 lbs] 65 meters [213 ft] cable capacity |
| Mud Pump | Progressive Cavity Pump, 140 L/min [40 GPM], 18 bar [265 PSI] |
| Rod Clamps Max. Passage | 35 mm – 180 mm [1 3/8 in – 7 in] |
| Clamping Force | 23,000 daN [50,700 lbs] |
| Automatic SPT Hammer | 63.5 kg [140 lbs], 0–50 Blows/min |

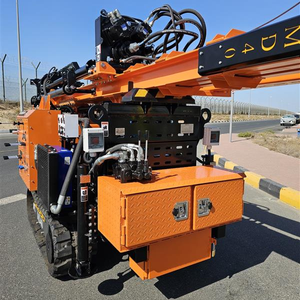

Layout Specifications
Weight (Skid Rig): 2,800 kg
Total Weight (Including Crawler): 3,500 kg
Length: 5,200 mm
Width: 1,600 mm
Height: 2,200 mm
Total Weight (Including Crawler): 3,500 kg
Length: 5,200 mm
Width: 1,600 mm
Height: 2,200 mm
